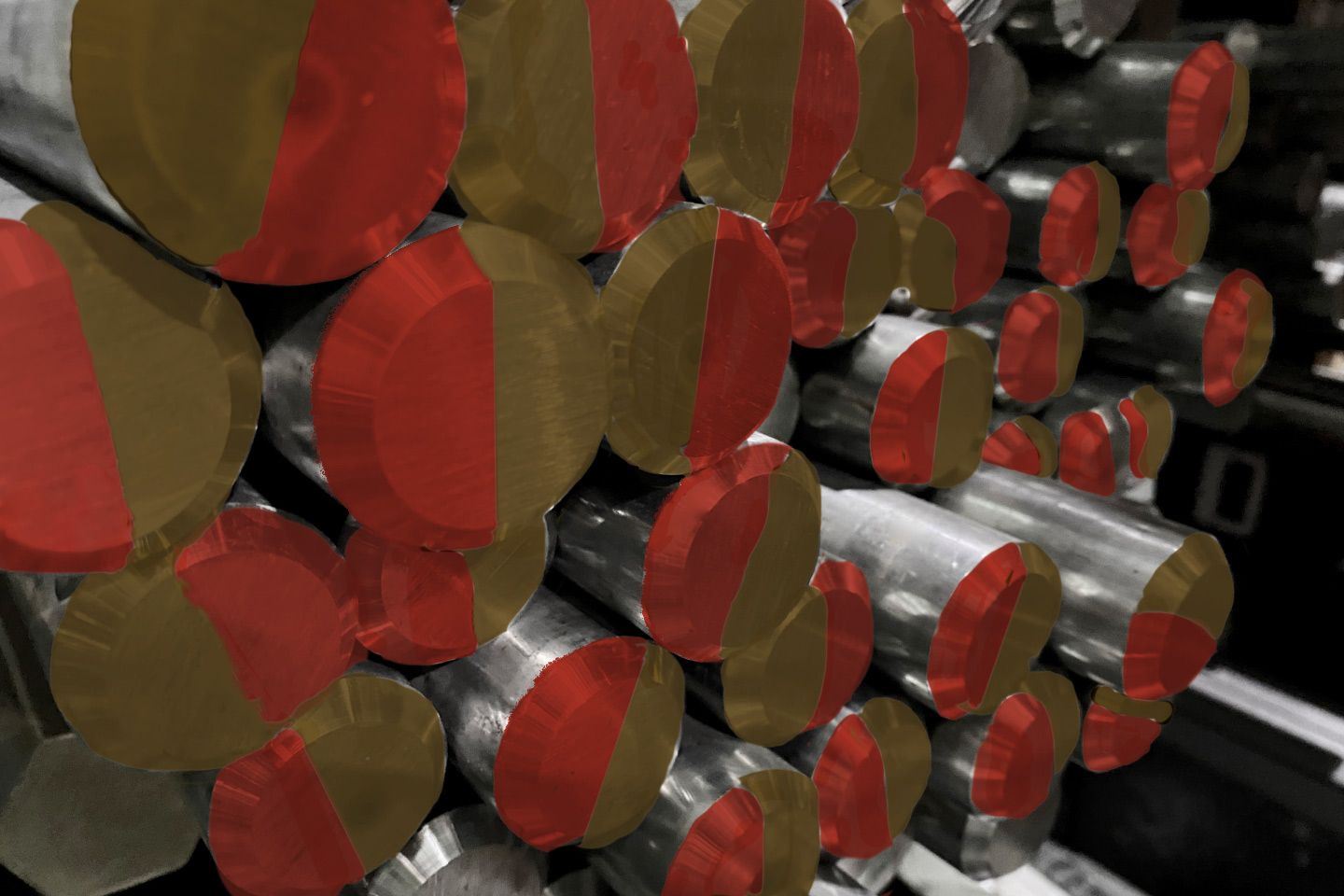

416 Stainless Bar

416 stainless bar is a martensitic heat treatable chromium steel. Grade 416 has the highest machinability of any stainless steel due to the addition of sulphur which forms manganese sulphide inclusions, this sulphur addition also lowers the corrosion resistance, weldability and formability.

This alloy is magnetic in all conditions and is widely used to manufacture screws, nuts, bolts, fasteners, gears and pinions.

To view 416 stainless bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


Rounds (mm)
6
8
10
12
16
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180
185
190
200
205
215
220
225
230
240
250
260
270
280
285
300
320
325
340
350
375
400
425
450
Rounds (inch)
1/4
5/16
3/8
1/2
9/16
5/8
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
3 3/4
4
4 1/2
4 3/4
5
5 1/2
5 3/4
6
6 1/2
6 3/4
7
8
9
10
12
13
14
15
16

The above is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

EN NumberSteel NameAISIUNSBS 970 1983Material Standard
1.4005X12CrS13416S41600416S31EN 10088-3
CMnSiCrMoPSFe
.15max1.25max1.0max12/14-.06max.15minBalance
