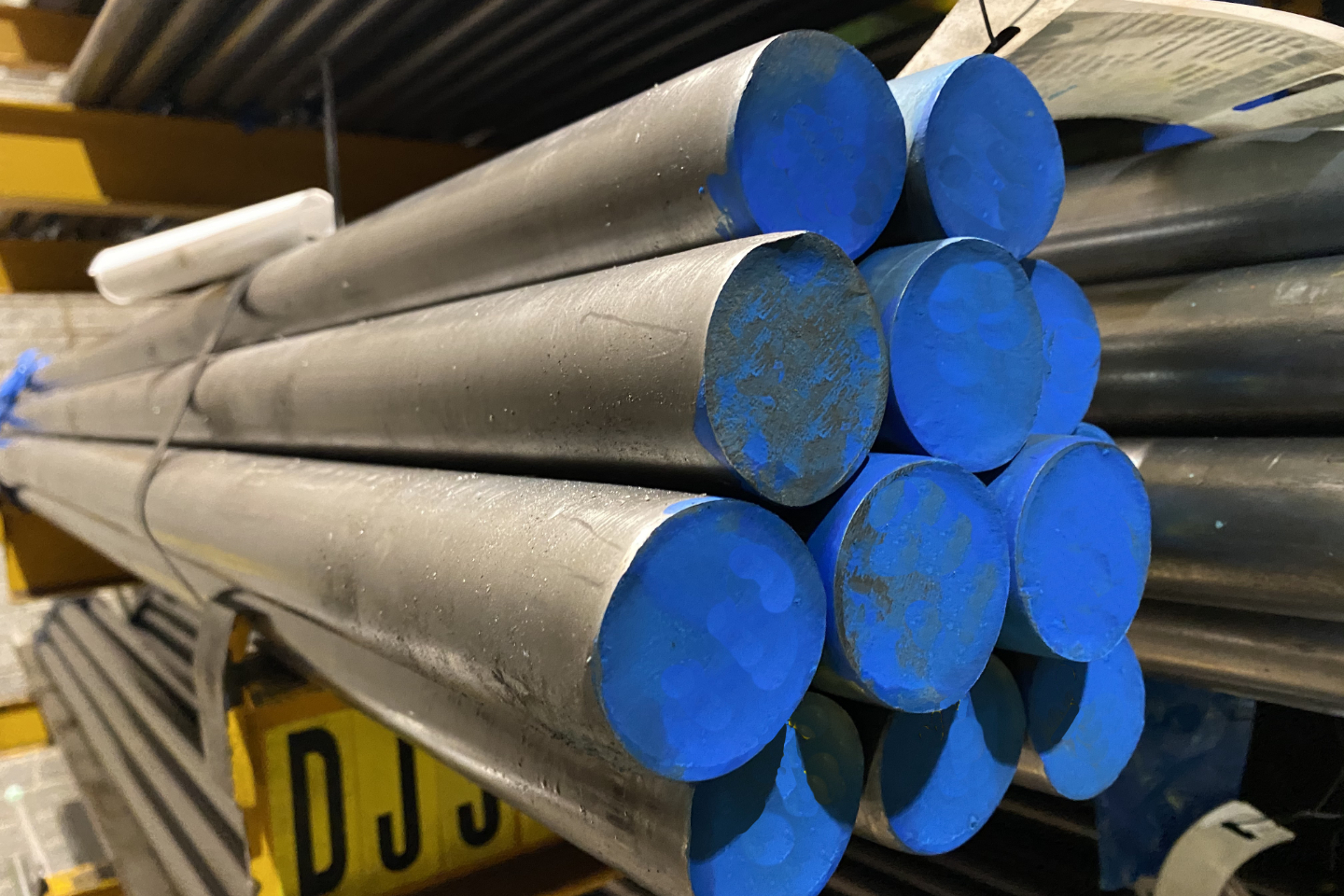

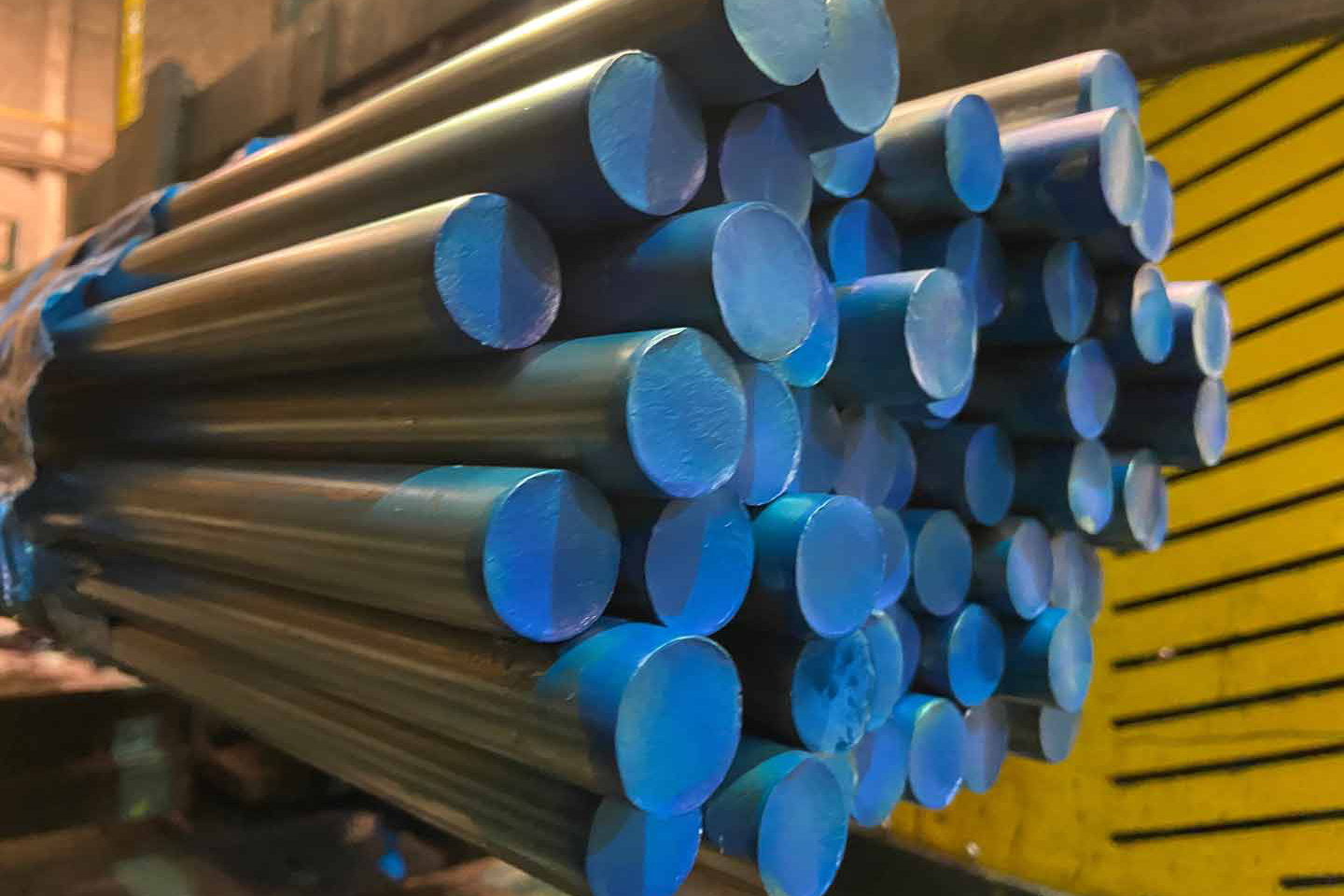

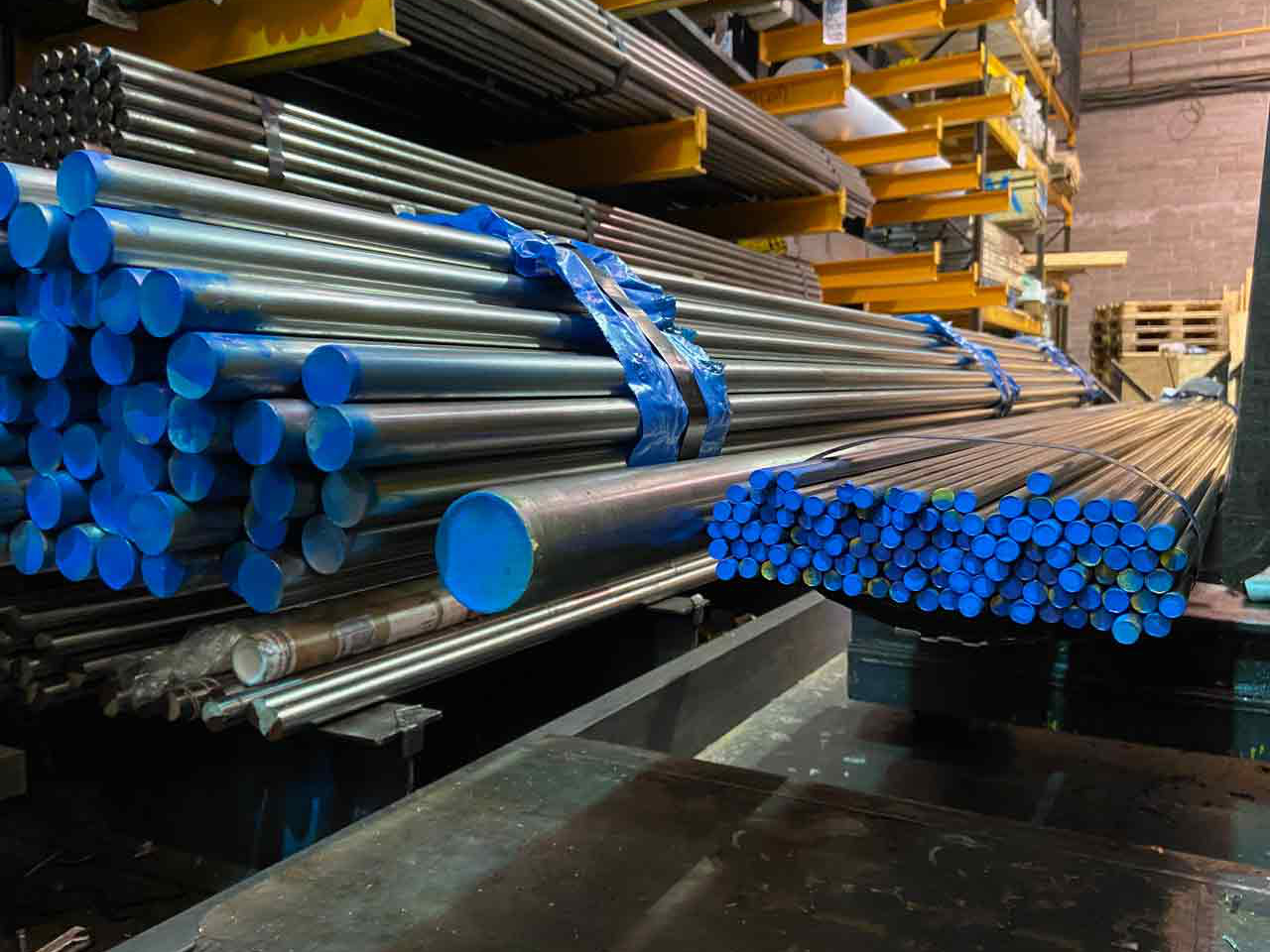

080A15/1018 Bright Bar (EN3B)

080A15/1018 Bright Bar (EN3B) is general-purpose plain carbon steel suitable for mechanical and allied engineering applications that will not be heavily stressed. It has good machining properties and is suitable for welding. This material can be case hardened and is normally used in the supplied condition.

Used in many engineering applications, suitable for studs, bolts, shafts, threaded bars, spindles, axles and machinery parts.

To view 080A15 (EN3B) chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:

Request More Info Get a Quote Call Us Email Us
Rounds (mm)
3.00
4.00
5.00
6.00
7.00
8.00
10.00
12.00
13.00
15.00
16.00
20.00
22.00
25.00
30.00
35.00
36.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
100.00
105.00
110.00
120.00
130.00
140.00
150.00
160.00
Rounds (inch)
1/8
3/16
1/4
5/16
3/8
7/16
1/2
9/16
5/8
11/16
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
1 7/8
2
2 1/8
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
3 3/4
4
4 1/4
4 1/2
4 3/4
5
5 1/2
6
7
7 1/4
8
8 1/2
9
9 1/2
10
Squares (mm)
6
8
10
12
15
20
25
30
35
40
45
50
55
60
65
70
75
80
100
125
Square (inch)
1/4
5/16
3/8
1/2
5/8
3/4
7/8
1
1 1/8
1 1/4
1 1/2
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
3 3/4
4
4 1/2
5
6
Flats (mm)
10 x 3
10 x 5
10 x 6
12 x 6
12 x 10
15 x 4
15 x 6
15 x 10
16 x 5
16 x 10
20 x 4
20 x 5
20 x 6
20 x 8
20 x 10
20 x 16
25 x 4
25 x 5
25 x 8
25 x 10
25 x 12
25 x 16
30 x 3
30 x 4
30 x 5
30 x 6
30 x 8
30 x 10
30 x 12
30 x 15
30 x 16
30 x 20
32 x 16
35 x 10
35 x 20
35 x 30
40 x 5
40 x 6
40 x 10
40 x 12
40 x 16
40 x 20
40 x 25
40 x 30
45 x 10
45 x 20
45 x 25
45 x 30
45 x 40
50 x 5
50 x 6
50 x 8
50 x 12
50 x 15
50 x 16
50 x 20
50 x 25
50 x 30
50 x 35
50 x 40
55 x 5
55 x 10
55 x 20
55 x 30
60 x 6
60 x 8
60 x 10
60 x 12
60 x 25
60 x 30
60 x 40
65 x 6
65 x 12
65 x 20
65 x 30
65 x 40
65 x 50
70 x 6
70 x 8
70 x 10
70 x 12
70 x 16
70 x 20
70 x 30
70 x 40
70 x 50
80 x 10
80 x 12
80 x 16
80 x 20
80 x 25
80 x 30
80 x 40
80 x 50
90 x 10
90 x 25
90 x 30
90 x 40
90 x 50
100 x 10
100 x 20
100 x 30
100 x 40
100 x 50
110 x 10
110 x 16
110 x 20
110 x 30
110 x 40
110 x 50
125 x 6
125 x 10
125 x 20
125 x 25
125 x 30
125 x 40
125 x 50
130 x 10
130 x 20
130 x 25
140 x 10
140 x 25
140 x 50
150 x 10
150 x 20
150 x 30
150 x 50
160 x 10
160 x 20
160 x 25
160 x 30
160 x 40
160 x 50
Flats (inch)
1⁄2 x 1⁄8
1⁄2 x 1⁄4
1⁄2 x 3⁄8
5⁄8 x 1⁄8
5⁄8 x 1⁄4
3⁄4 x 1⁄8
3⁄4 x 1⁄4
3⁄4 x 5⁄16
3⁄4 x 3⁄8
3⁄4 x 1⁄2
1 x 1⁄8
1 x 1⁄4
1 x 5⁄16
1 x 3⁄8
1 x 1⁄2
1 x 5⁄8
1 x 3⁄4
1 1⁄4 x 1⁄8
1 1⁄4 x 1⁄4
1 1⁄4 x 3⁄8
1 1⁄4 x 1⁄2
1 1⁄4 x 5⁄8
1 1⁄4 x 3⁄4
1 1⁄4 x 1
1 1⁄2 x 1⁄8
1 1⁄2 x 1⁄4
1 1⁄2 x 3⁄8
1 1⁄2 x 1⁄2
1 1⁄2 x 5⁄8
1 1⁄2 x 3⁄4
1 1⁄2 x 1
1 3⁄4 x 1⁄4
1 3⁄4 x 3⁄8
1 3⁄4 x 1⁄2
1 3⁄4 x 3⁄4
1 3⁄4 x 1
2 x 1⁄8
2 x 1⁄4
2 x 3 5⁄16
2 x 1⁄2
2 x 5⁄8
2 x 3⁄4
2 x 1
2 x 1 1⁄4
2 x 1 1⁄2
2 x 1 3⁄4
2 1⁄4 x 1⁄4
2 1⁄4 x 1⁄2
2 1⁄4 x 3⁄4
2 1⁄4 x 1
2 1⁄4 x 1 1⁄2
2 1⁄2 x 1⁄8
2 1⁄2 x 3⁄16
2 1⁄2 x 1⁄4
2 1⁄2 x 3⁄8
2 1⁄2 x 1⁄2
2 1⁄2 x 5⁄8
2 1⁄2 x 3⁄4
2 1⁄2 x 2
2 5⁄8 x 1
3 x 1⁄8
3 x 1⁄4
3 x 3⁄8
3 x 1⁄2
3 x 5⁄8
3 x 3⁄4
3 x 1
3 x 1 1⁄4
3 x 1 1⁄2
3 x 1 3⁄4
3 x 2
3 x 2 1⁄2
3 1⁄4 x 1 1⁄2
3 1⁄2 x 3⁄8
3 1⁄2 x 5⁄8
3 1⁄2 x 3⁄4
3 1⁄2 x 1
3 3⁄4 x 1 1⁄2
4 x 1⁄4
4 x 3⁄8
4 x 1⁄2
4 x 5⁄8
4 x 3⁄4
4 x 1
4 x 1 1⁄2
4 x 1 3⁄4
4 x 2
4 x 2 1⁄2
4 x 3
4 1⁄2 x 1⁄4
4 1⁄2 x 3⁄8
4 1⁄2 x 1⁄2
4 1⁄2 x 3⁄4
4 1⁄2 x 1
4 1⁄2 x 2
5 x 1⁄4
5 x 1⁄2
5 x 3⁄4
5 x 1
5 x 1 1⁄4
5 x 1 1⁄2
5 x 2
5 x 3
6 x 1⁄4
6 x 3⁄8
6 x 1⁄2
6 x 5⁄8
6 x 3⁄4
6 x 1
6 x 1 1⁄4
6 x 1 1⁄2
6 x 1 3⁄4
6 x 2
6 x 2 1⁄2
6 x 3
6 x 4
7 x 1⁄2
7 x 3⁄4
7 x 1
8 x 1⁄4
8 x 1⁄2
8 x 3⁄4
8 x 1
8 x 1 1⁄2
8 x 2
10 x 1⁄4
10 x 1⁄2
10 x 3⁄4
10 x 1
10 x 1 1⁄2
10 x 2
12 x 1⁄4
12 x 1⁄2
12 x 3⁄4
12 x 1
12 x 1 1⁄2
12 x 2

The above is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

Steel NumberSteel NameGradeAISI/SAESymbolMaterial StandardEN Number
1.1151C15En3B1020/1021070M20/080A15EN10083-1EN3B
GradeCMnSiPS
BS970 080A15.13 - .181.0 max.35 max.06 max.06 max
